Sugon 3005D Imported DC Power Supply


₹ 6198 ₹ 12000 48% off


Specification :
Operating Conditions :
Input voltage: 220V /
Frequency range: 50- 60Hz
Operating temperature : 32-104 ? (0-40 ºC)
Operating humidity : < 80%RH
Storage temperature : 32-158 ? (0-70 ºC)
Storage humidity : < 70%RH

1

Description

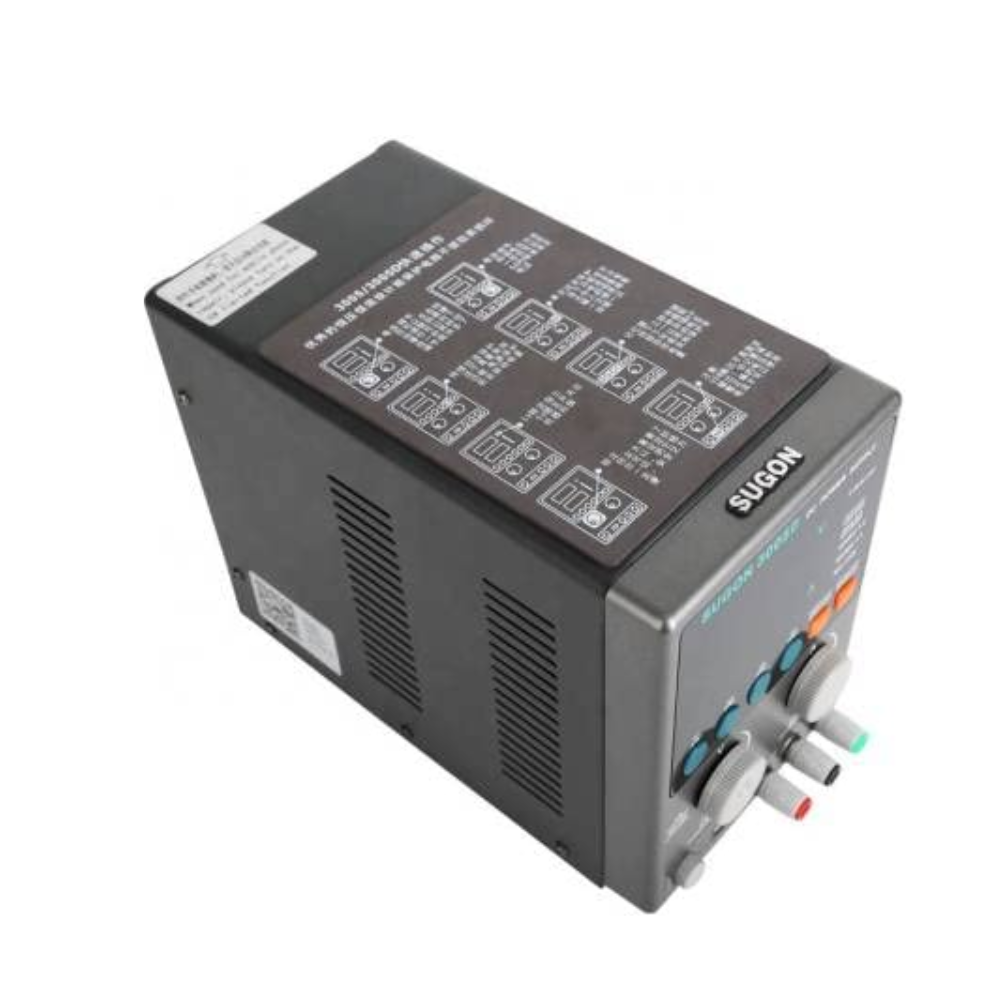

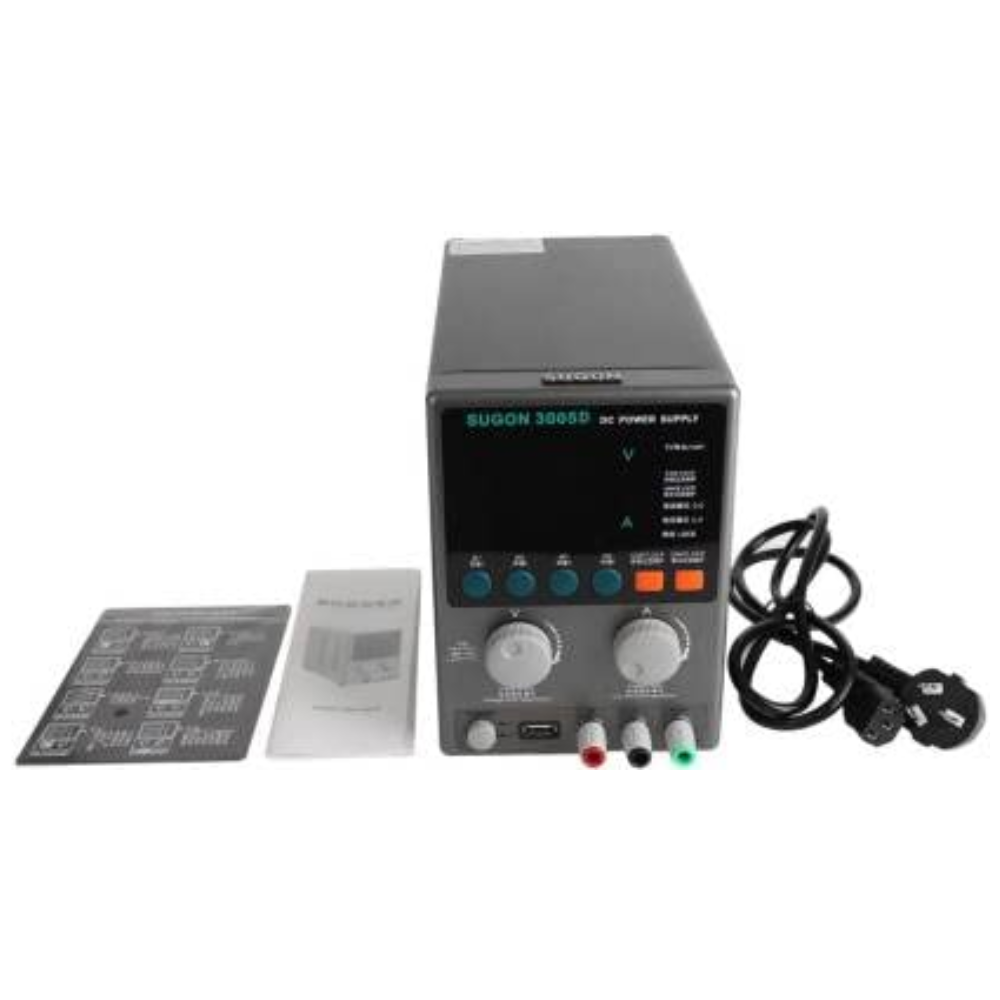

Sugon 3005D Imported DC Power Supply

The Sugon 3005D is a high-precision, adjustable DC regulated power supply widely utilized in electronics repair, laboratory testing, and industrial production lines. It is particularly popular among smartphone and laptop repair technicians due to its stability and four-digit precision.

Below is the full product description and technical specifications organized for quick reference.

Product Overview

The Sugon 3005D is a linear DC power supply designed for high efficiency and low noise. It features a large LED display for real-time monitoring of voltage and current, coupled with a robust cooling system to ensure longevity during continuous operation.

 Technical Specifications

Feature Specification Details
Model Sugon 3005D (Imported Version)

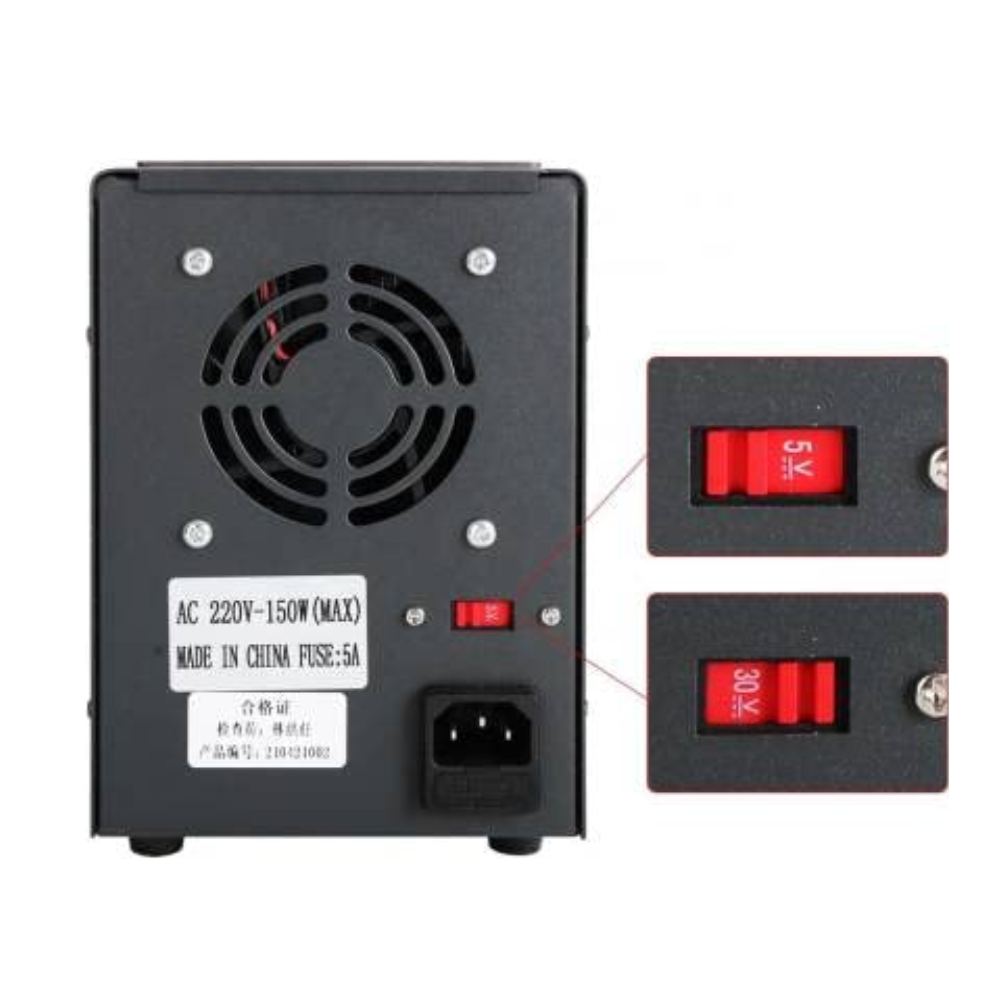

Input Voltage AC 110V / 220V (Switchable)
Output Voltage Range 0 - 30V DC (Continuously Adjustable)
Output Current Range 0 - 5A DC (Continuously Adjustable)
Display Type 4-Digit LED Digital Display
Voltage Display Accuracy 0.1VA
Current Display Accuracy  0.01A
Ripple and Noise 1mV
Cooling Method Intelligent Temperature-Controlled Fan

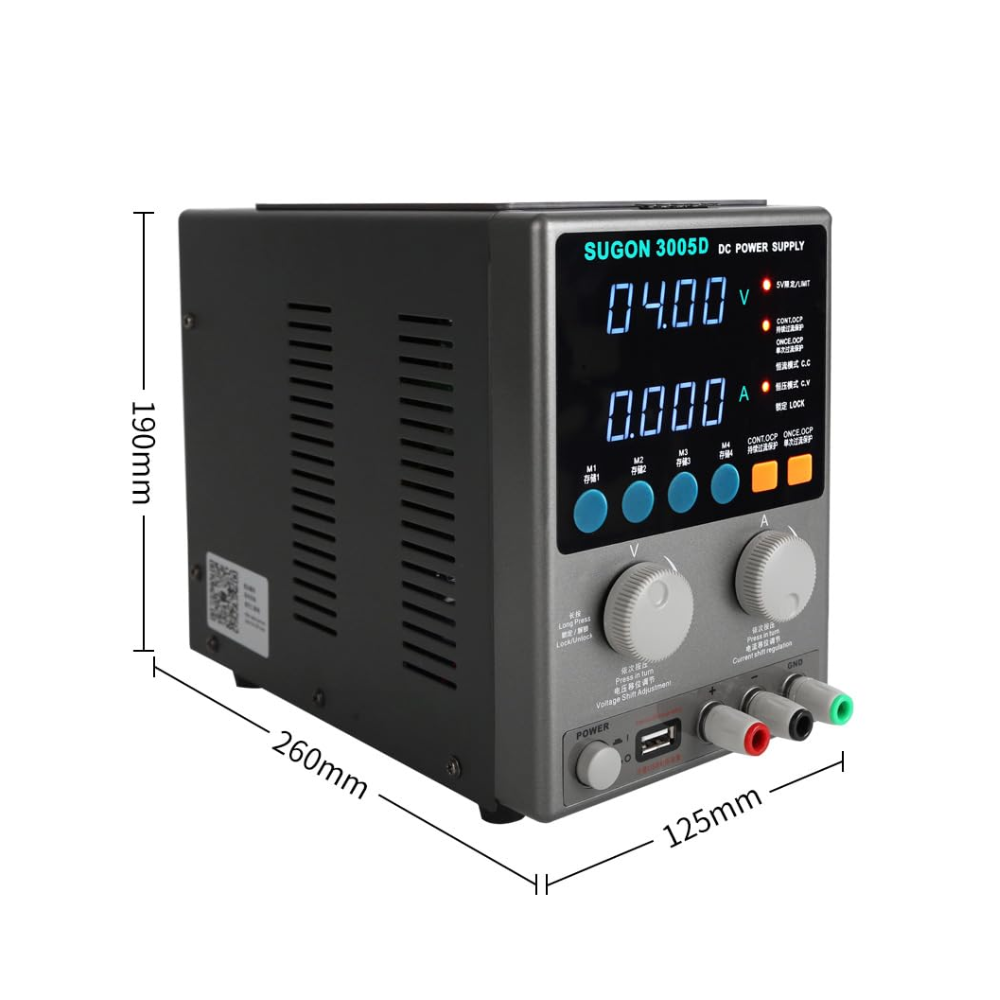

Dimensions Approx. 260mm x 125mm x 155mm
Weight Approx. 4.5kg - 5kg (Linear Transformer based)

Key Functional Features

Function Description
Constant Voltage (CV) Ensures the output voltage remains stable despite changes in load.
Constant Current (CC) Limits the output current to a set level, protecting sensitive components from overcurrent.
Short Circuit Protection Automatically cuts off or limits output when a short circuit is detected to prevent board damage.

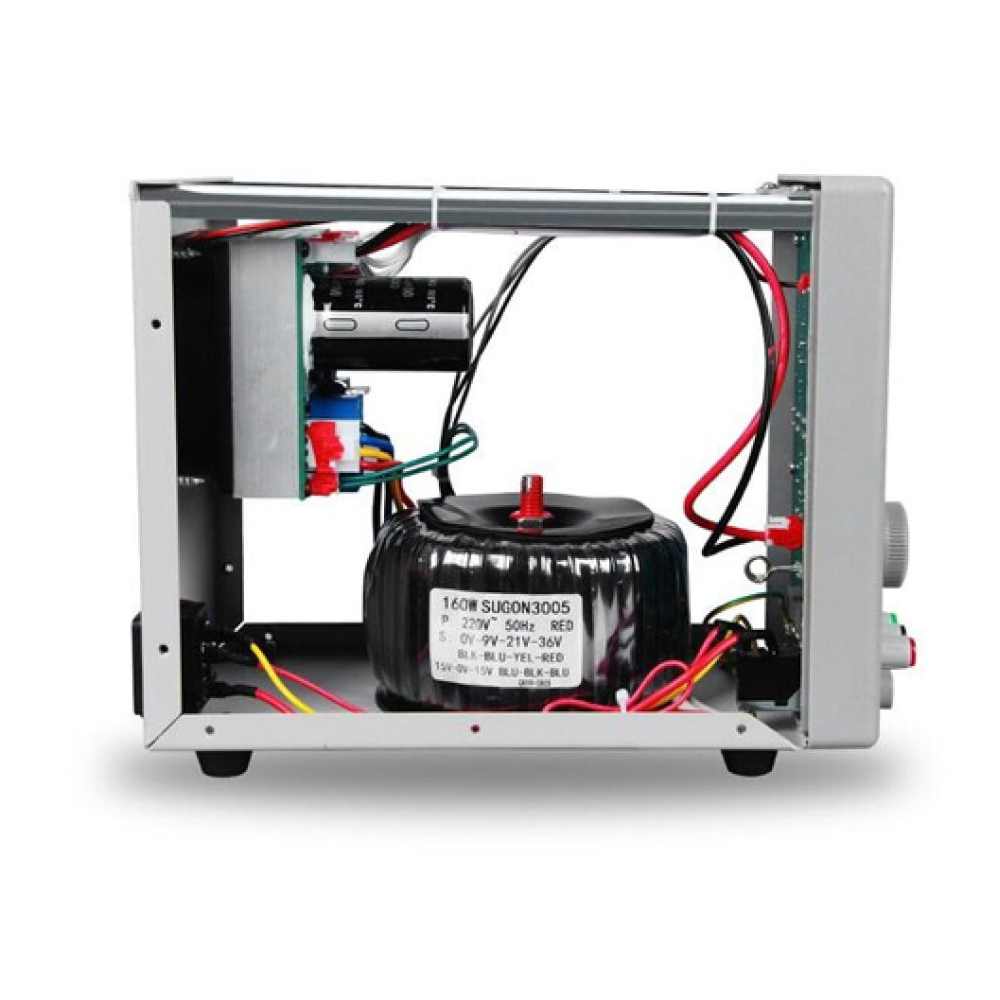

High Stability Uses a high-quality copper transformer for stable performance and low electromagnetic interference.
Fine/Coarse Tuning Dual knobs for both voltage and current allow for precise adjustments down to the decimal.
RF Signal Detection Integrated mobile phone signal strength detection (useful for diagnosing RF issues in phones).

Sugon 3005D Imported DC Power Supply

Sugon 3005D Imported DC Power Supply

Sugon 3005D Imported DC Power Supply
