Description

NBL Screen Reverse Touch Separator Silicone Suction Pad

The NBL Screen Reverse Touch Separator Silicone Suction Pad is a specialized tool designed for mobile phone repair technicians. It is essential for safely removing screens, touch panels, and glass assemblies without causing damage to the delicate display layers or the frame. Its "reverse touch" design allows for a secure, vacuum-like grip on glass surfaces, making it an indispensable asset for screen replacement and motherboard diagnostic procedures.

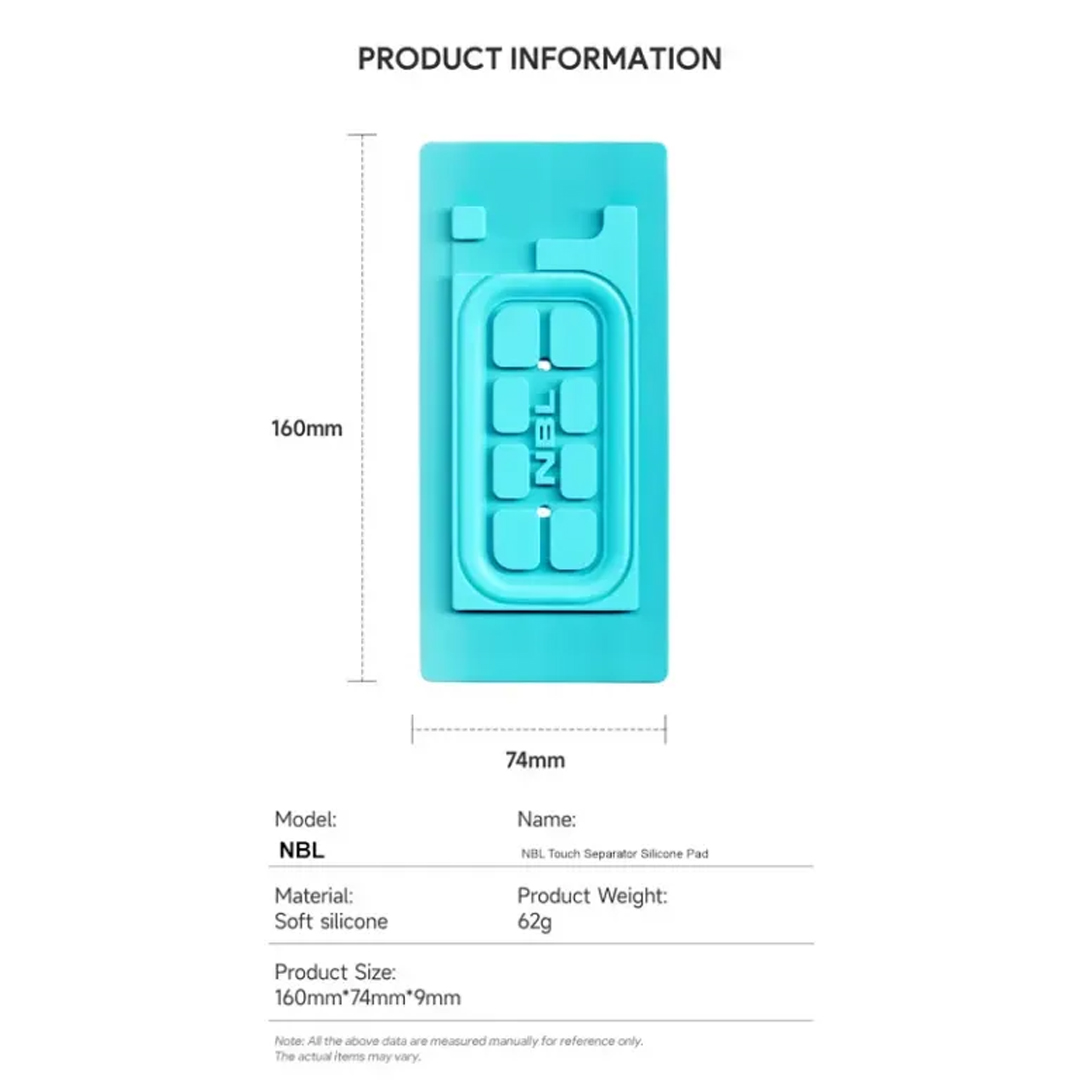

Product Specifications

Key Technical Advantages

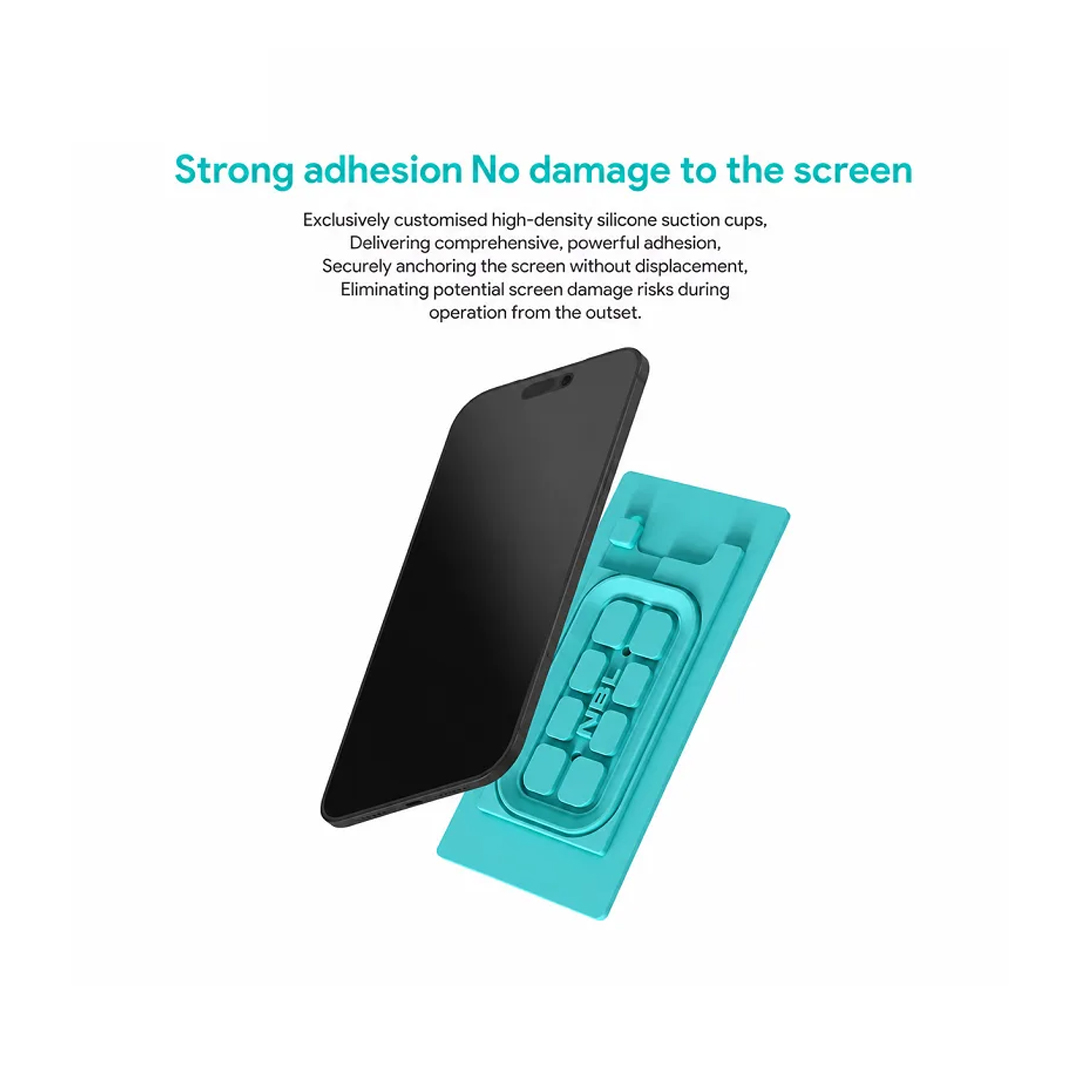

• Non-Marring Technology: The high-quality silicone construction ensures a powerful grip on glass surfaces without leaving marks, smudges, or scratches on the display or back housing.

• Superior Suction Strength: Engineered to maintain a stable vacuum seal on both flat and slightly curved surfaces, significantly reducing the risk of the device slipping during delicate disassembly.

• High Thermal Stability: Designed to withstand the heat generated by screen separators and heating platforms, ensuring the suction power does not degrade during the critical "warming" phase of screen removal.

• Ergonomic Handling: The compact design provides technicians with maximum leverage, allowing for controlled and consistent pulling force when separating bonded adhesive layers.

• Anti-Static Properties: Built with ESD-safe materials, providing an extra layer of protection for sensitive internal circuitry and components against electrostatic discharge.

Professional Applications

The NBL Silicone Suction Pad is a versatile tool used in various stages of the repair workflow:

1. Display Removal: Safely lifts front glass and OLED/LCD assemblies after heating, preventing the screen from snapping or cracking during the extraction process.

2. Back Cover Extraction: Ideal for assisting in the removal of glass back panels on modern smartphones, providing the necessary leverage to apply a thin prying tool.

3. Component Positioning: Acts as a stabilizing tool when aligning components or glass during the reassembly phase.

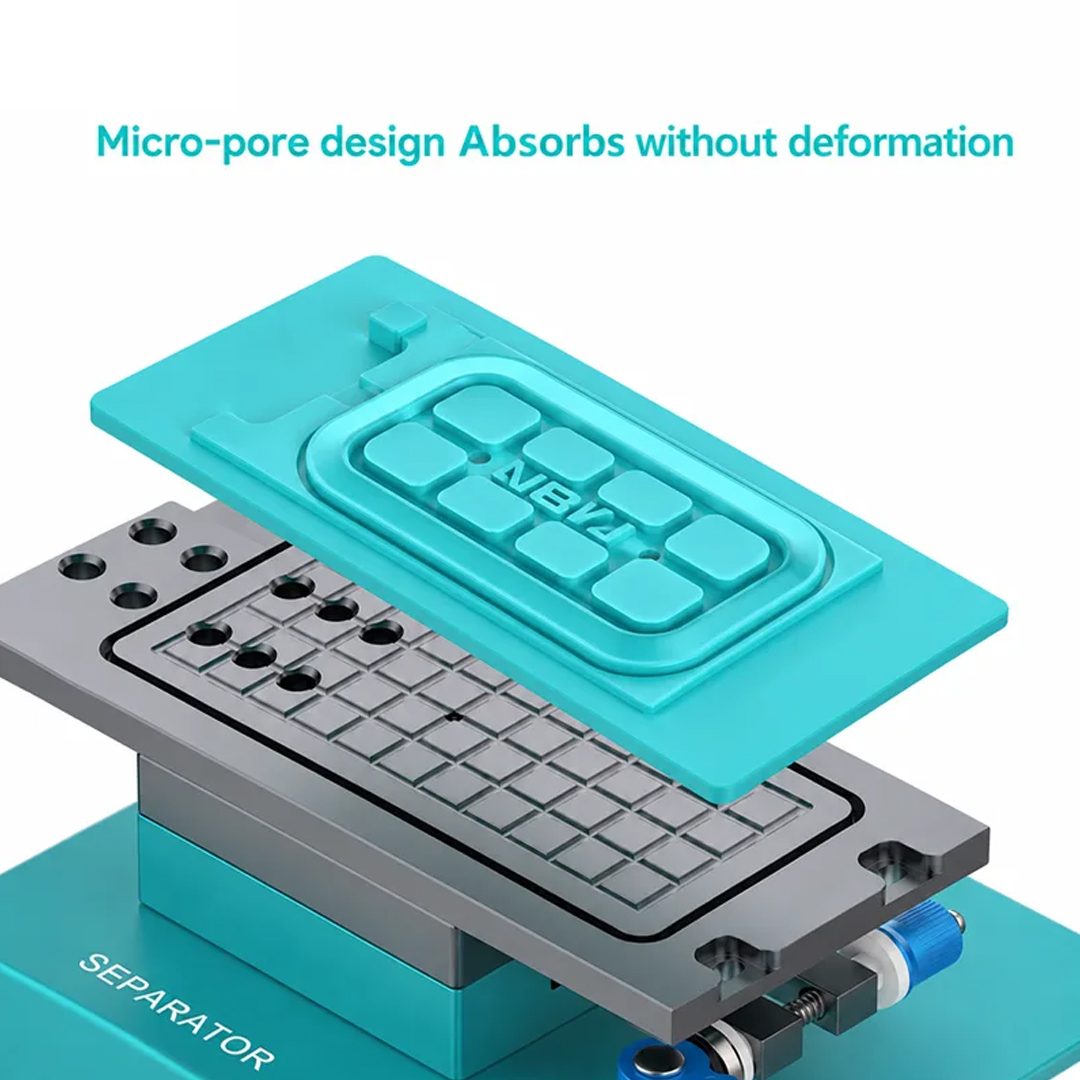

4. Hands-Free Stabilization: Can be used on heating plates to securely hold components in place, allowing the technician to focus on the precision work at hand.

Best Practices for Optimal Performance

Important: To ensure the longevity and effectiveness of the suction pad, clean both the tool and the target surface with a lint-free cloth and a small amount of IPA before application to remove oils and dust.

• Surface Preparation: Always ensure the device screen is clean. Dust or dirt particles between the suction pad and the screen can reduce vacuum efficiency.

• Application Method: Press the center of the suction cup firmly against the screen to expel air. Avoid using excessive force that might flex the glass too deeply.

• Release Mechanism: To remove the tool, gently lift the edge of the silicone seal to break the vacuum before pulling away from the device.

• Maintenance: Store in a clean, dust-free environment. If the silicone surface becomes contaminated with debris, gently rinse with water and allow to air dry to restore its original tackiness.
