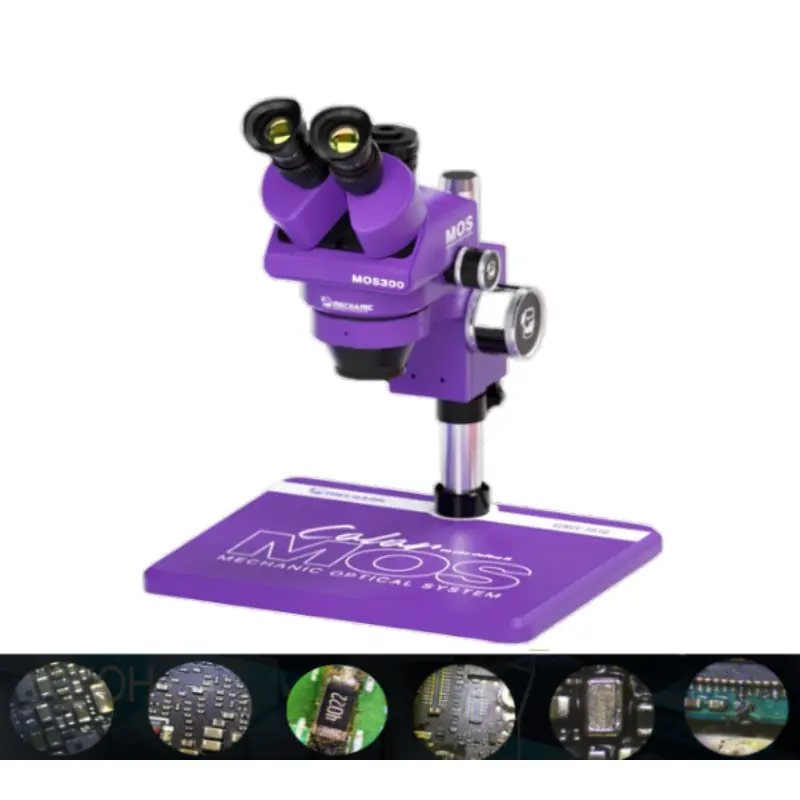

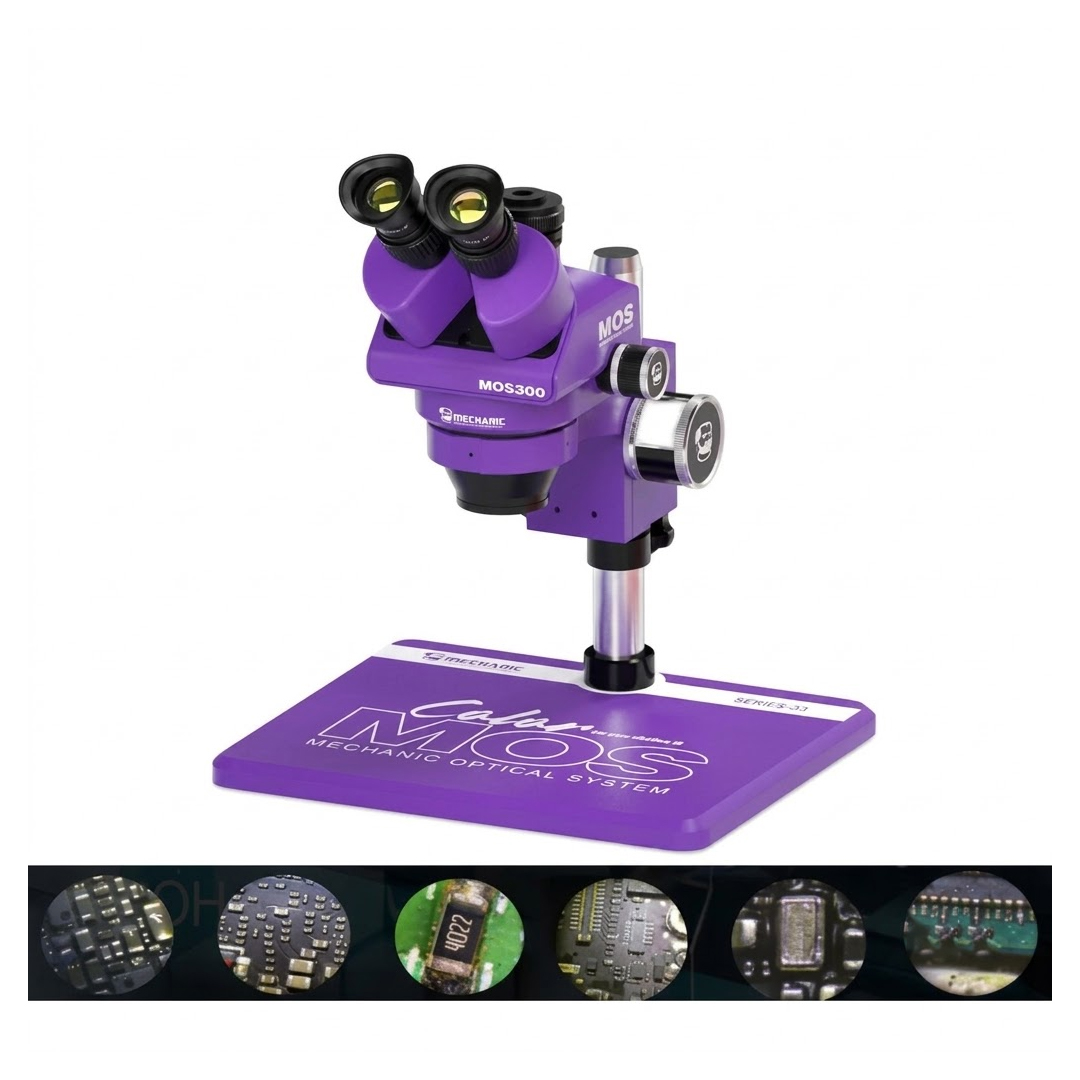

Mechanic Mos300-B11 Microscope (Purple) With 0.5X Lence

₹ 18998 ₹ 32000 41% off

Product Specifications:

Model: Mechanic Mos300-B11
Magnification: 40x, 100x, 400x
Illumination: LED with adjustable brightness
Frame Material: Metal
Color: Purple
Dimensions: [Insert dimensions]
Weight: [Insert weight]
Accessories Included: Prepared and blank slides, user manual, cleaning cloth.

1

Only 1 Product left!

Description

Mechanic Mos300-B11 Microscope Purple With 0.5X Lence

1. Product Overview & Key Identifiers

Parameter	Product Details
Brand	MECHANIC
Model Number	MOS300-B11 (Purple Edition)
Microscope Type	True Trinocular Stereo Zoom Microscope
Primary Application	Micro-soldering, PCB Motherboard Repair, IC Rework, Mobile & Electronics Diagnostics
Special Aesthetic Variant	Vibrant Industrial Metallic Purple
Included Optics Bundle	Standard WF10X/22 Eyepieces + 0.5X Barlow Auxiliary Objective Lens

2. Technical and Optical Specifications

Component / Feature	Technical Specifications & Performance Metrics
Optical System	Continuous Parallel Greenough Optical System; High-definition multi-coated lenses
Continuous Zoom Range	0.6X - 4.5X continuous optical zoom (Magnification ratio 1:7.5)
Standard Magnification	6X - 45X (Using default 10X Eyepieces without auxiliary lenses)
Modified Magnification (with 0.5X Lens)	3X - 22.5X continuous reduction/zoom scaling

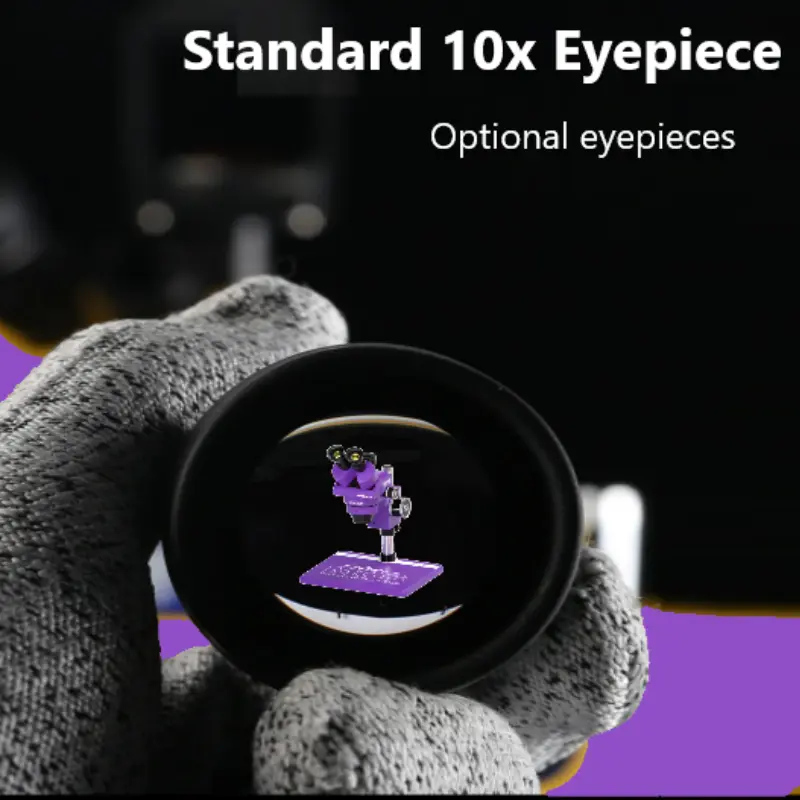

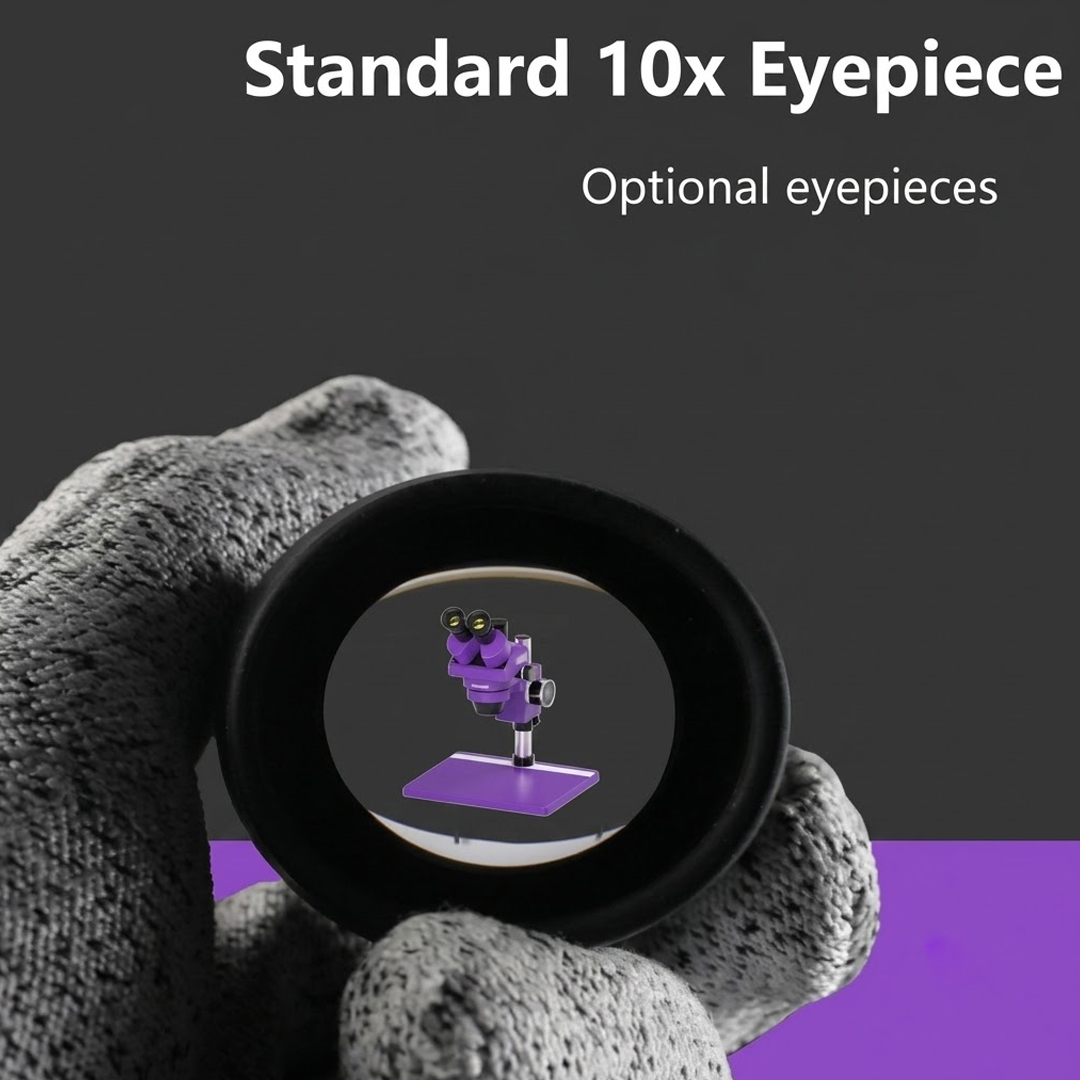

Eyepieces (Included)	High eye-point, Wide-field WF10X / 22mm (Optimized for users with eyeglasses)
Trinocular Output Interface	Integrated C-Mount connection with specialized CTV 2/5 Video Adapter
Simultaneous Display Capability	True Trinocular; Synchronous display on monitor via camera and through eyepieces
Objective Lens Barrel Material	Pure copper core construction to prevent internal glare and optical dispersion

3. Ergonomics, Adjustments, and Mechanical Engineering

Mechanical Feature	Adjustment & Operational Capability
Observation Head Incline	Ergonomic 45º angle inclination to reduce cervical spine fatigue
Rotation Capability	360º fully rotatable microscope head housing
Interpupillary Distance Adjustment	Variable distance control ranging from 54mm to 76mm
Diopter Correction	Bilateral independent adjustment range of ±5DP
Focusing Gear Assembly	Heavy-duty, industrial-grade metal rack and pinion mechanism
Focus Column Compatibility	76mm diameter focus block holding bracket; 32mm structural pole sizing
Base Configuration	B11 Column Base Variant: Flat, large-plate heavy metal workstation base

4. Impact of the Included 0.5X Auxiliary Barlow Lens

Operational Metric	Without 0.5X Auxiliary Lens (Standard)	With 0.5X Auxiliary Lens Attached (Upgraded)
Working Distance (Clearance)	Approx. 100mm space below the lens	Expanded to approx. 165mm - 175mm
Field of View (FOV)	Standard inspection area radius	Doubled wide-angle viewing area
Magnification Scale	Higher base detail level (6X - 45X)	Lower base power for broader scanning (3X - 22.5X)
Solder/Rework Tool Clearance	Narrow workspace; limited air space for heat guns	Maximum spatial freedom for hot-air stations & iron tips

5. Illumination & Auxiliary Camera Integration

Sub-System	Operational Capabilities & Compatibility
Included Light Source	Specialized multi-diode adjustable LED ring light array
Brightness Configuration	Continuous variable knob control for intensity matching

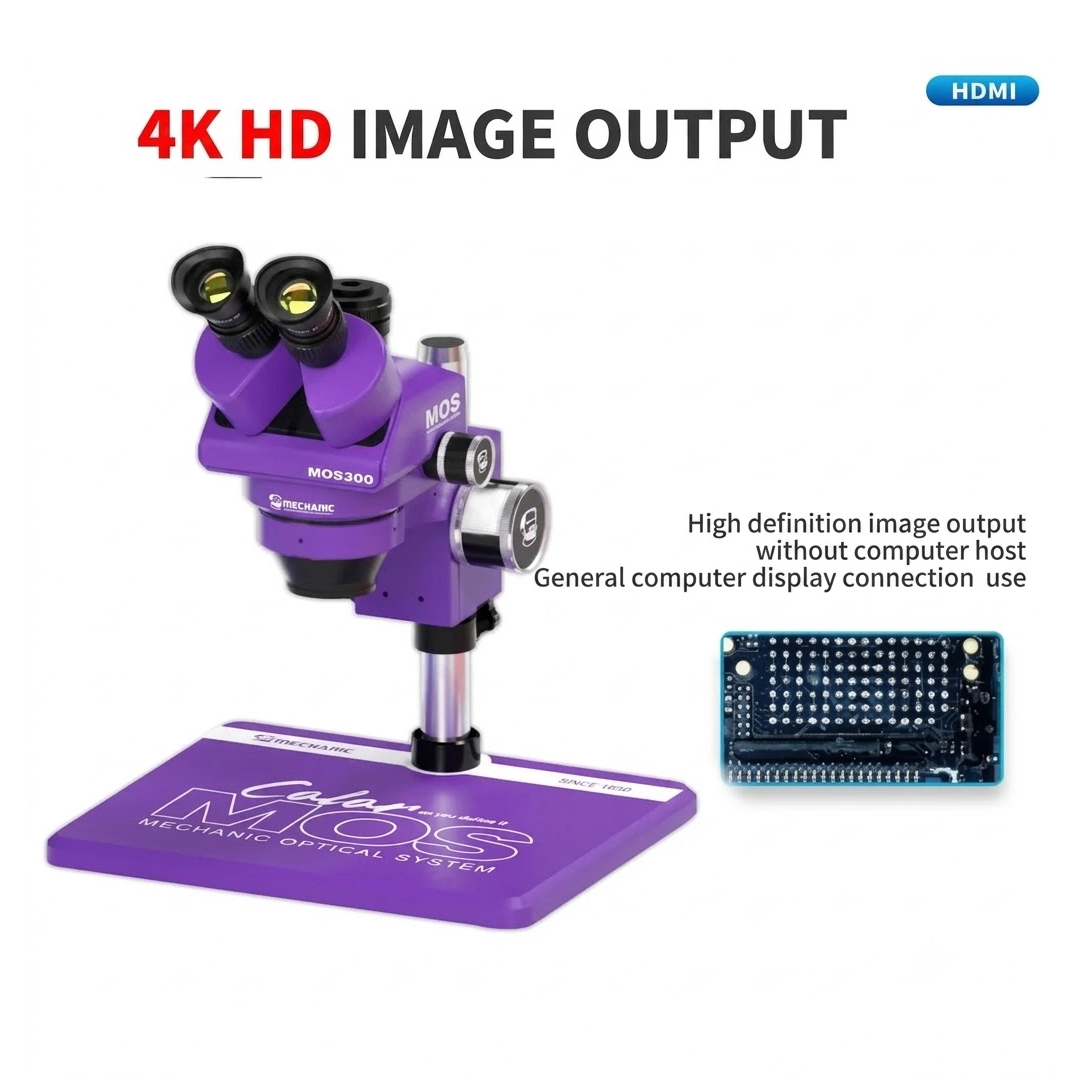

Digital Imaging Support	Direct 4K Ultra-HD camera integration compatibility (via C-mount thread)
CTV 2/5 Adapter Advantage	Eliminates visual edge vignette (dark corners); optimizes 16:9 monitor mapping

6. Physical Dimensions, Weight, and Workspace footprint

Dimension Metric	Measurement Specifications
Workstation Base Width	200mm
Workstation Base Depth	273mm
Total Assembly Height	280mm
Gross Shipping Weight	Approximately 5.0kg to 5.5kg (Heavy counterweighted setup)
Stage Reversible Plate	Reversible High-contrast Black/White solid background disc

7. Package Contents (What is in the Box)

Item Code / Component	Included Quantity	Functional Description
MOS300 Purple Stereo Head	1 Unit	Core optical trinocular body housing
B11 Large Column Base + Pole	1 Assembly	Heavy structural platform with mounting vertical rod
WF10X/22 High-Eye Point Eyepieces	1 Pair (2 Pcs)	Wide-field ocular lens setup
0.5X Barlow Auxiliary Objective Lens	1 Unit	Threat-on protective/workspace expanding optical glass
CTV 2/5 C-Mount Video Adapter	1 Unit	Optical intermediary piece for digital camera attachment
Adjustable LED Ring Light	1 Unit	Direct, top-down illumination system
Rubber Eye-Guards (Goggles)	1 Pair (2 Pcs)	Ergonomic side-light shielding eye cups
Protection Equipment	1 Set	Objective lens dust mirror assembly + storage wrap

8. Industry Applications and Use-Cases

Segment Target	Task Customization Profile
Micro-Electronics Repair	Precision logic board diagnostics, tracing micro-fractures, jumping broken copper traces.
BGA / IC Reballing	Precise alignment of stencil arrays and multi-layer structural alignments on advanced chipsets.
Smart Device Rework	Ideal for high-level mobile servicing, charging port replacements, and face ID flex alignments.
Education & Training	Real-time true trinocular screen synchronization allows instructors to display tasks on large screens.

Mechanic Mos300-B11 Microscope (Purple)

Mechanic Mos300-B11 Microscope (Purple) With 0.5X Lence

Mechanic Mos300-B11 Microscope (Purple) With 0.5X Lence

Mechanic Mos300-B11 Microscope (Purple) With 0.5X Lence

Mechanic Mos300-B11 Microscope (Purple) With 0.5X Lence '
