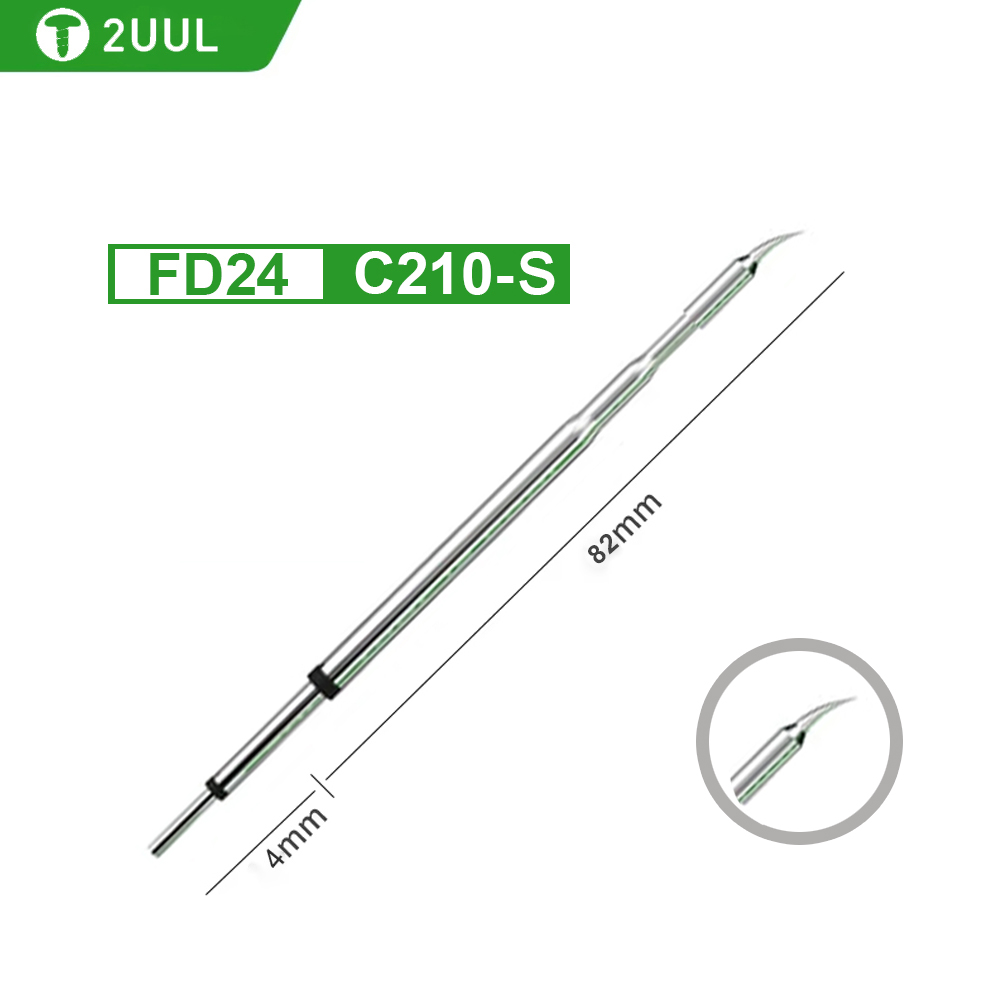

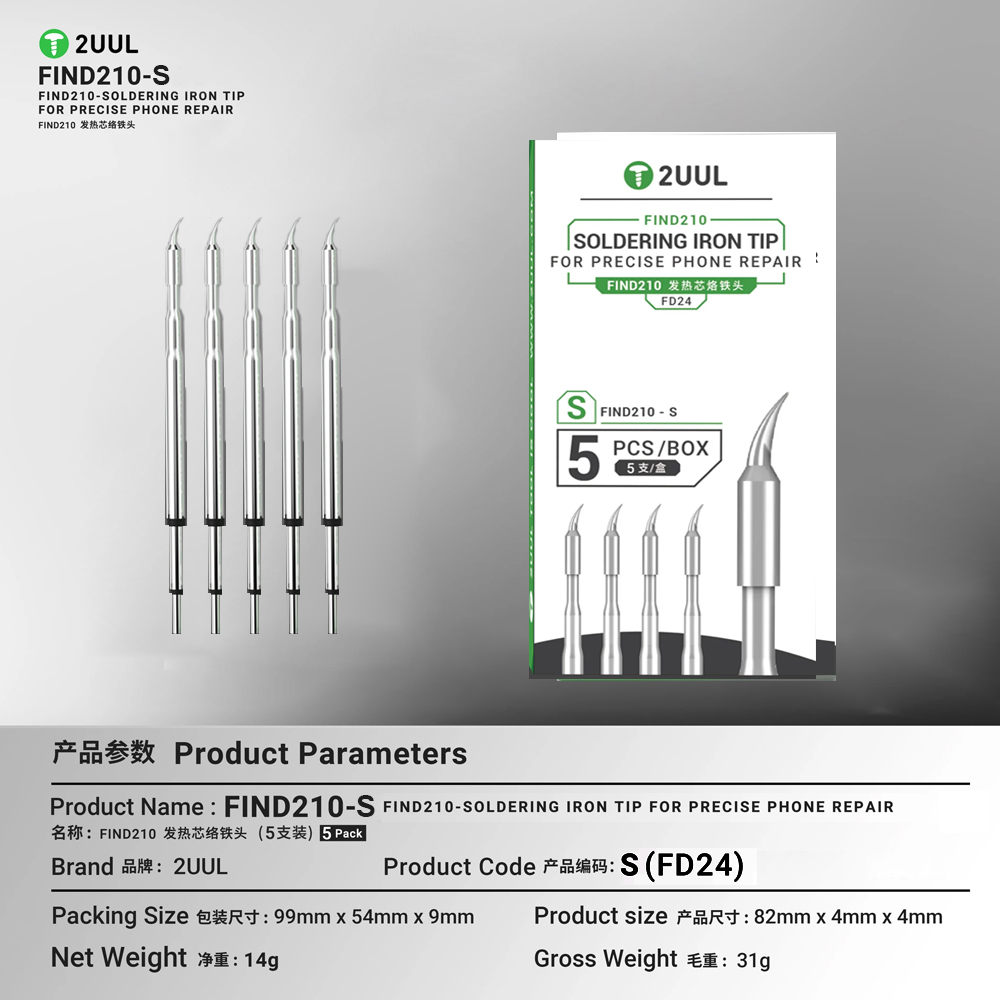

2uul FD24 C210-S Soldering Iron Tip 5 Pack

The 2UUL FD24 C210-S Soldering Iron Tip 5 Pack consists of specialized fine chisel-shaped soldering iron tips designed for precision soldering applications. These tips are compatible with C210 soldering stations and cater to tasks requiring both accuracy and controlled heat distribution. Here's a breakdown of their uses:

Uses of 2UUL FD24 C210-S Soldering Iron Tips

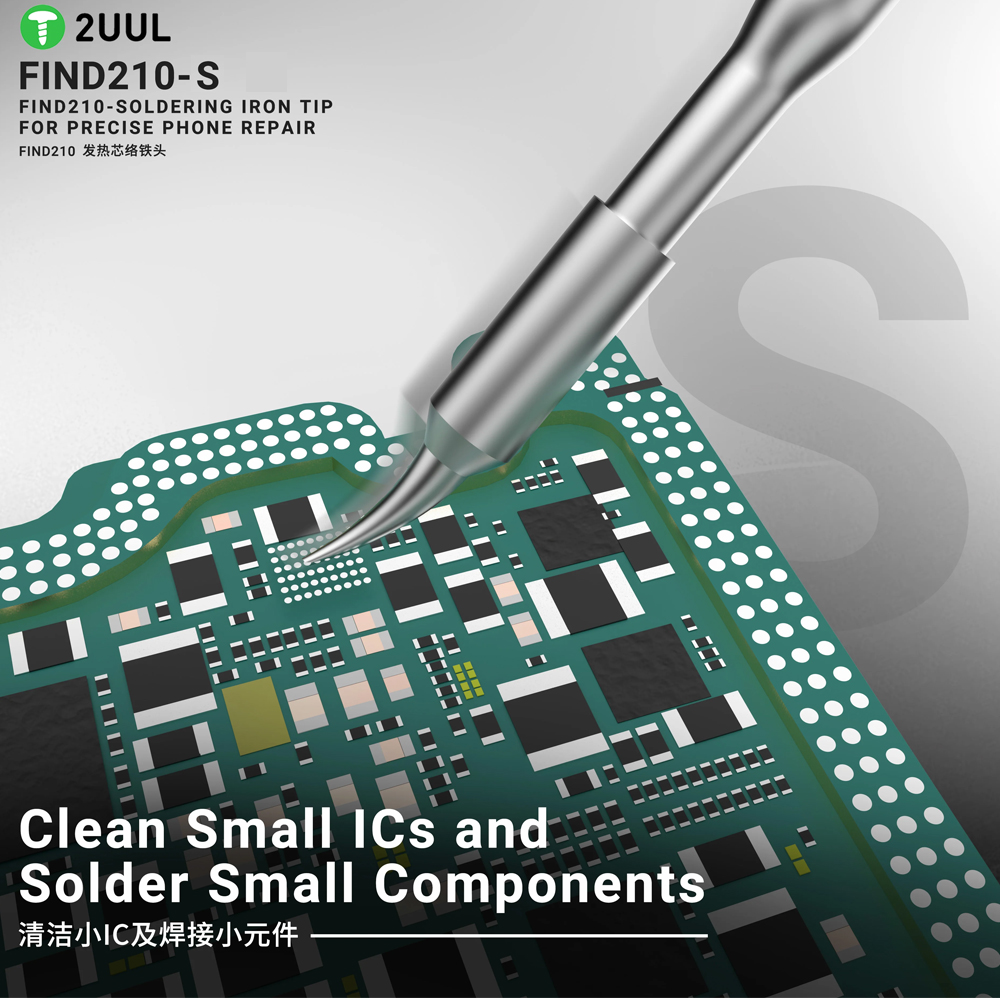

1. SMD Component Soldering

• Ideal for soldering small Surface-Mount Devices (SMDs) like resistors, capacitors, and diodes.
• Ensures precise application of solder on fine pads.

2. Connector Repairs

• Excellent for repairing or replacing delicate connectors, such as:
  • FPC (Flexible Printed Circuit) connectors.
  • SIM card slots.
  • Charging ports.

3. Logic Board Repairs

• Suitable for work on mobile phone or tablet logic boards, especially for:
  • Soldering small traces.
  • Reworking fine-pitch ICs and components.

4. Micro-Soldering Tasks

• Perfect for soldering tasks requiring pinpoint accuracy, such as:
  • Jumper wire soldering.
  • Debugging small circuits by adding or modifying connections.

5. BGA Rework Assistance

• Assists in reballing or reattaching small Ball Grid Array (BGA) components by precisely applying solder to required areas.

6. Reflow Soldering

• Allows controlled heating of small areas to reflow solder on miniature joints without affecting surrounding components.

Features of 2UUL FD24 C210-S Soldering Tips

1. Chisel Shape:

   • Offers a broader contact surface compared to needle tips, making it versatile for small and slightly larger pads.
   • Allows for efficient heat transfer to the joint.

2. Fine Size:

   • Provides excellent control for intricate soldering tasks without compromising precision.

3. High Thermal Conductivity:

   • Quickly heats up and maintains stable temperatures for consistent soldering performance.

4. Durable Construction:

   • Built from high-quality materials to resist wear and oxidation, ensuring long-lasting use.

5. C210 Compatibility:

   • Designed for use with soldering stations that support C210 tips.

Applications in Mobile and Electronics Repair

1. Mobile Devices:
   • Repairing delicate smartphone and tablet components.
2. Wearable Electronics:
   • Ideal for compact devices like smartwatches or fitness trackers.
3. Laptops and Gadgets:
   • Reworking small components on laptop motherboards or other compact electronic gadgets.
4. Prototyping:
   • Used for assembling or modifying prototype circuits requiring precise soldering.

Tips for Optimal Use

1. Set Appropriate Temperature:
   • Use the recommended temperature range (typically 300–350°C) based on the solder and components being used.
2. Clean Regularly:
   • Maintain the tip by cleaning it with a brass wire cleaner or damp sponge to remove oxidation and solder residue.
3. Use Tinning:
   • Apply solder to the tip after each use to protect it from oxidation and ensure it stays in good condition.
4. Pair with Quality Solder:
   • Use high-quality solder wire for smoother and more reliable joints.

The 2UUL FD24 C210-S Soldering Iron Tip 5 Pack is an essential tool for anyone involved in high-precision soldering, offering reliability, accuracy, and versatility for a range of electronics and mobile repair applications.
