MECHANIC MOS300-B11 MICROSCOPE WITH 0.5X LENS


₹ 17848.00 ₹ 25000 29% off


Specification: MOS300-B11:

  • * Observation head: 45decline, 360rotate, pupil distance 54—76mm; bilateral visual adjustment ±5
  • * Adjustable eyepiece: Standard: WF10X25, high-angle wide-angle eyepiece provides convenience for observers wearing glasses
  • * Optional eyepiece: WF10x22mm, WF15x15mm, WF20x10mm, WF25x9mm, WF30x8mm
  • * Objective: 0.6X—4.5X Zoom Range, objective magnification ratio 1:10,
  • * Auxiliary Lens: 0.3X, 0.5X, 0.75X, 1X, 1.5X, 2X For option
  • * Magnification:  Standard:6X–45X, optional and auxiliary lenses can be extended to 1.8X—90X continuous doubling
  • * Working Distance: 100mm
  • * Focus arm: 76mm Diameter, 32mm pole size
  • * Plate: Black/White plate
  • * Base: B11 column type large plate base, another base can be selected
  • * Outward Size: 200mm(W)*273mm(D)*280mm(H)
  • * illumination: Optional LED Illumination, see LED light source series diagram for details
Out of Stock

Description

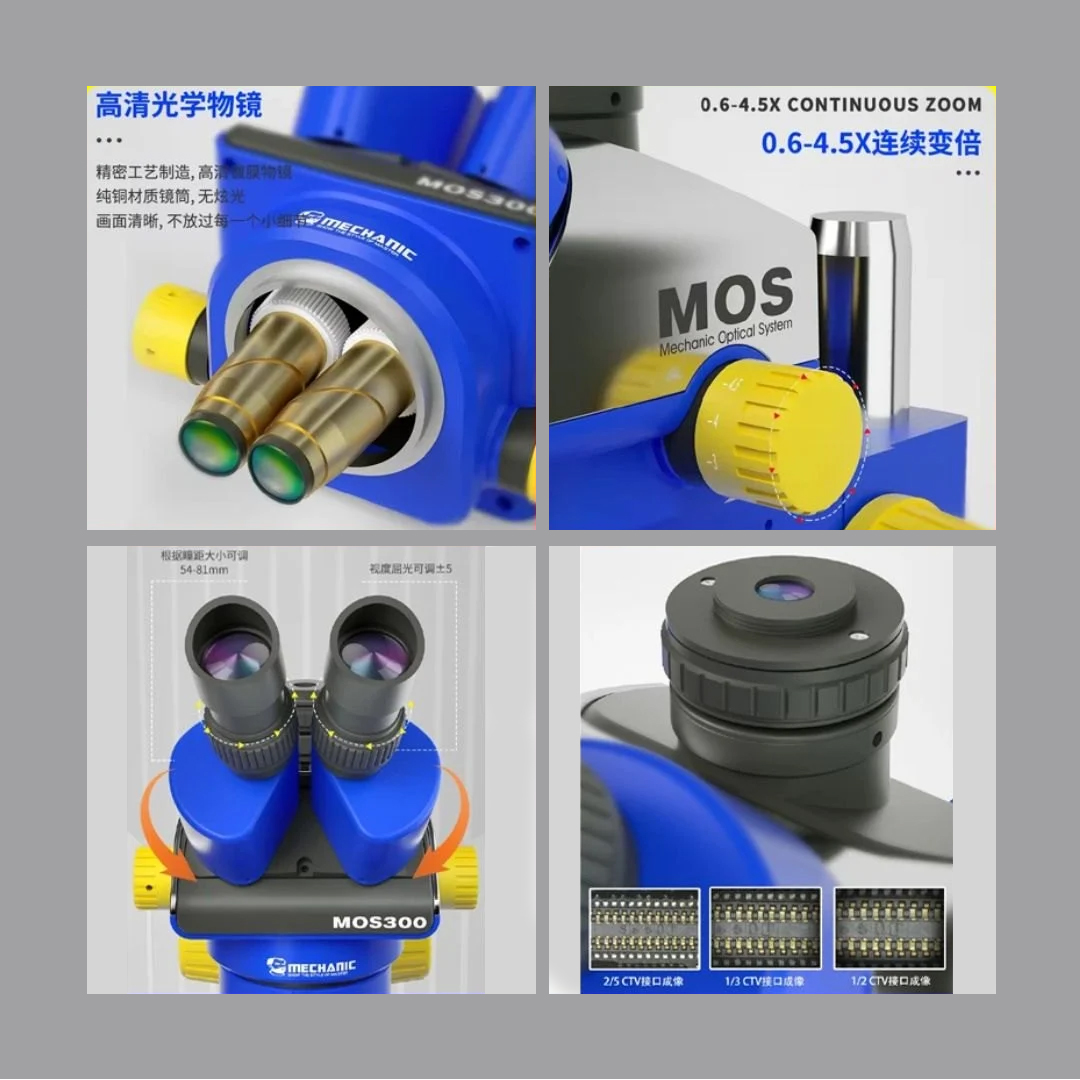

MECHANIC MOS300 MICROSCOPE WITH 0.5X LENS



The MECHANIC MOS300 microscope is a high-quality, compact microscope designed for various scientific and educational applications. It features a durable construction, excellent optics, and an adjustable LED light source for optimal viewing. With its compact size, it is easy to transport and store, making it an ideal choice for fieldwork and mobile laboratories.





Features:



  • The high-definition optical objective lens, precision process manufacturing, high-definition coated objective lens



  • Pure copper material lens barrel, no glare, clear picture, do not miss every small detail



  • WF1OX/25 eyepiece, Trinocular diopter can be adjusted ±5DP, making Trinocular observation easier



  • With the high field of view wide-angle eyepiece, standard WF10X/25MM, it is still convenient to wear glasses for observation



  • 0.6-4.5X continuous zoom, optical system, large magnification continuous zoom, sharp imaging, and no distortion, very high definition, can correctly focus on samples with large uneven surfaces, so as to obtain a three-dimensional image.



  • The focusing gear rack is made of metal material, which is durable and accurate with magnification, making the image clearer



  • CTV2/5 adapter, clearer image than ordinary TV interface, wider field of view, no vignetting



  • True trinocular high-definition display, matched with 4K high-definition camera display, eye-clearing observation is synchronized with the screen display content, high-definition large screen without smear (only the package includes the high-definition camera, the bare metal does not include the high-definition camera)



  • The mirror body can be adjusted freely, and the microscope body can be adjusted 360°, freeing up the workbench and not affecting other operations



Packing Details:

  • * 1xMECHANIC MOS300-B11 MICROSCOPE WITH 0.5X LENS







MECHANIC MOS300-B11 MICROSCOPE WITH 0.5X LENS

MECHANIC MOS300-B11 MICROSCOPE WITH 0.5X LENS

MECHANIC MOS300-B11 MICROSCOPE WITH 0.5X LENS 2
