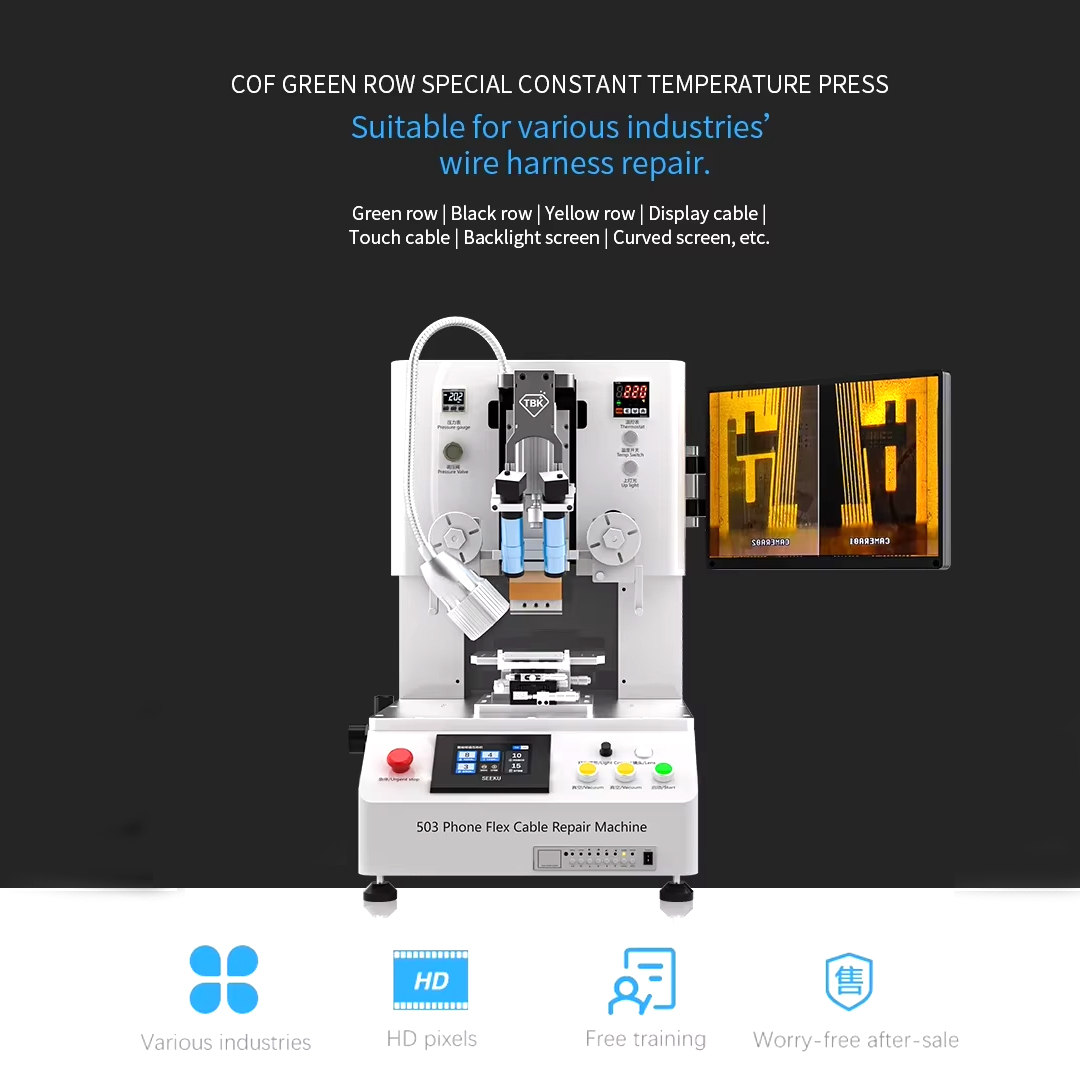

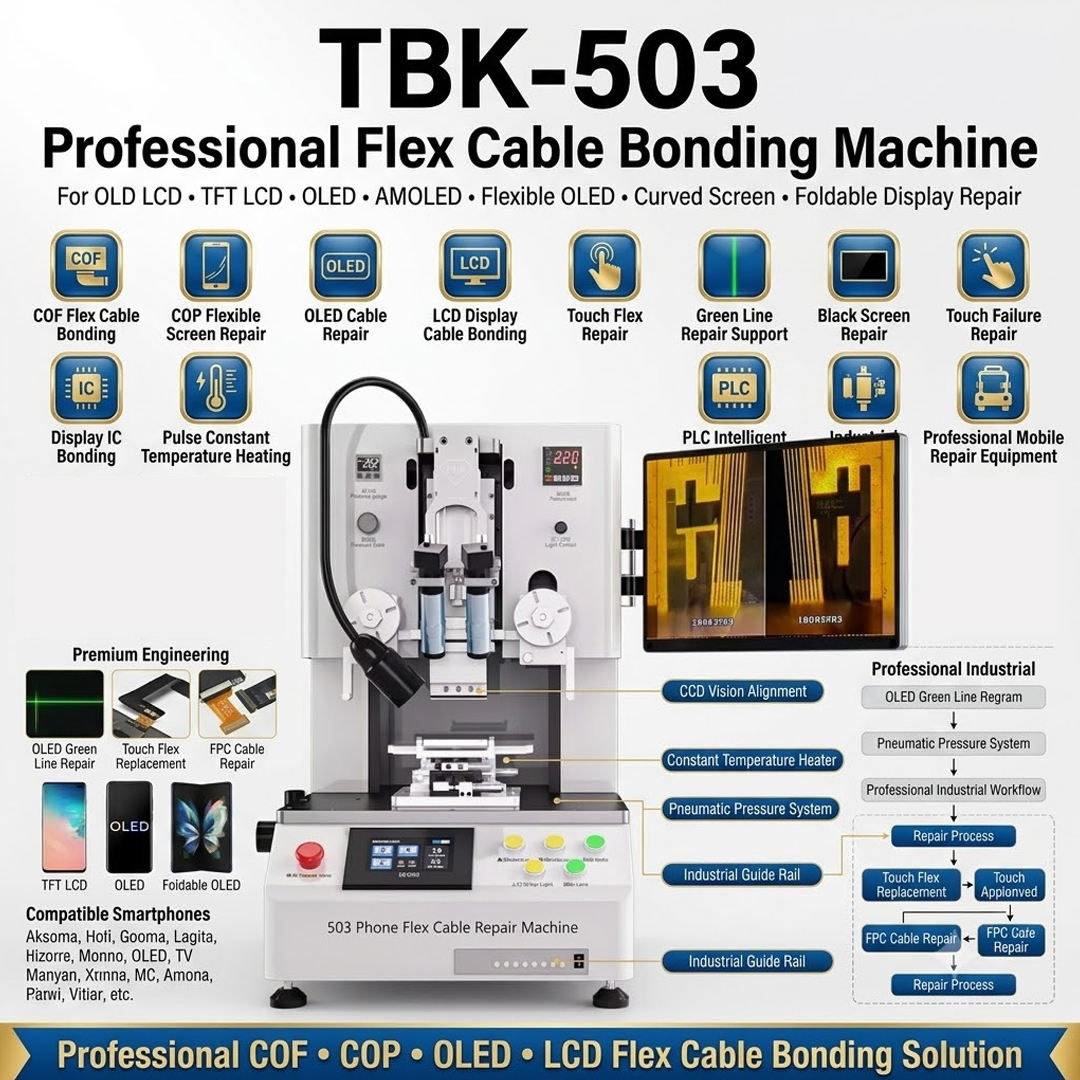

TBK-503 Flex Cable Bonding Machine For OLD-LCD-Flexible screen-curved screen

The TBK-503 is a professional-grade, high-precision pulse heating bonding machine engineered specifically for smartphone screen restoration. It is the ultimate solution for fixing touch failure, black screens, flickering, and the notorious "green line" issue on modern displays. By utilizing a high-accuracy digital camera alignment system and an advanced titanium alloy pressure head, it flawlessly bonds flex cables (FPC/COF/COP) onto standard LCDs, flexible OLEDs, and curved premium displays.

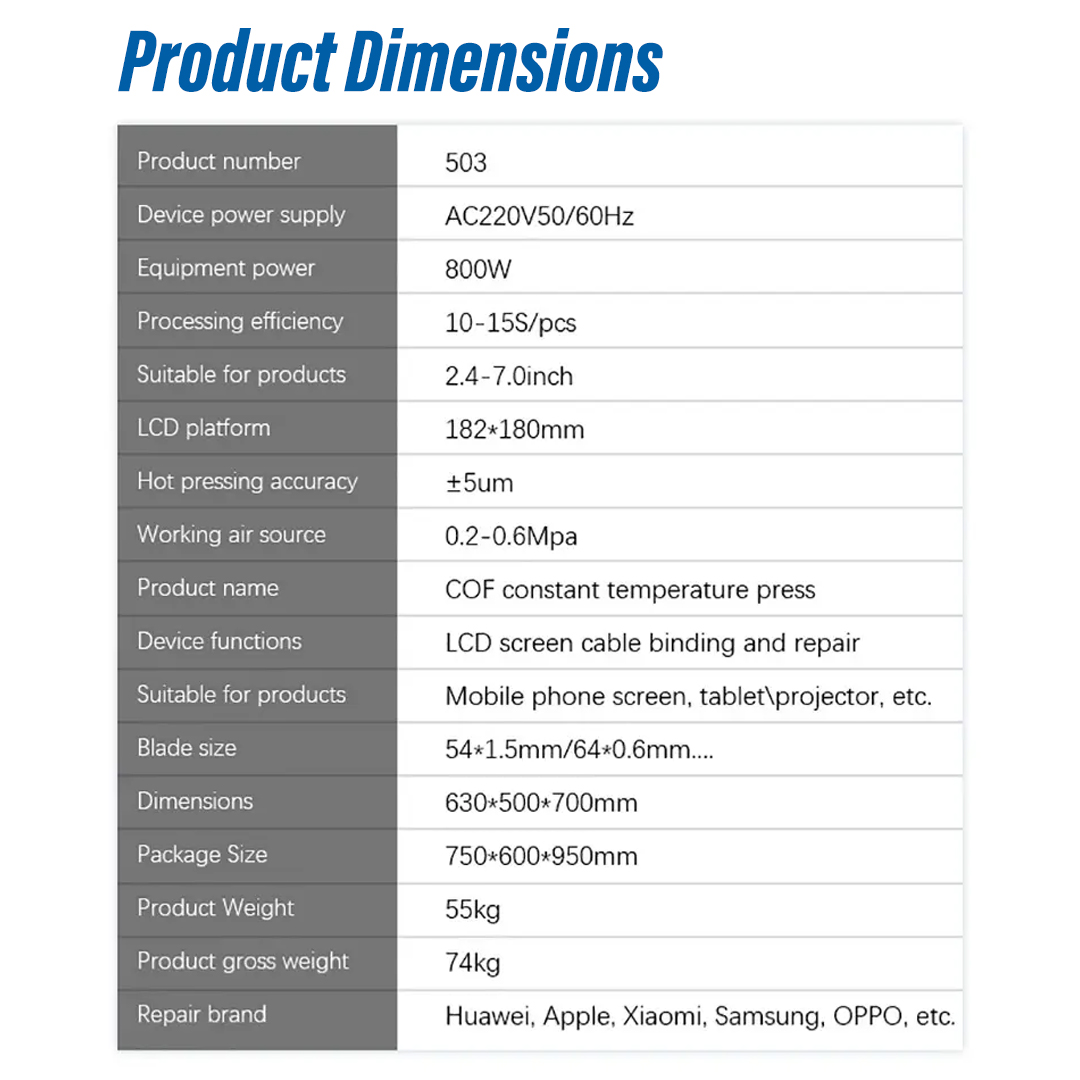

Product Feature / Spec	Detailed Description & Value
Brand & Model	TBK-503 (Genuine Original Equipment)
Primary Application	Bonding and repairing Flex Cables, FPC, COF, COP, and Display ICs

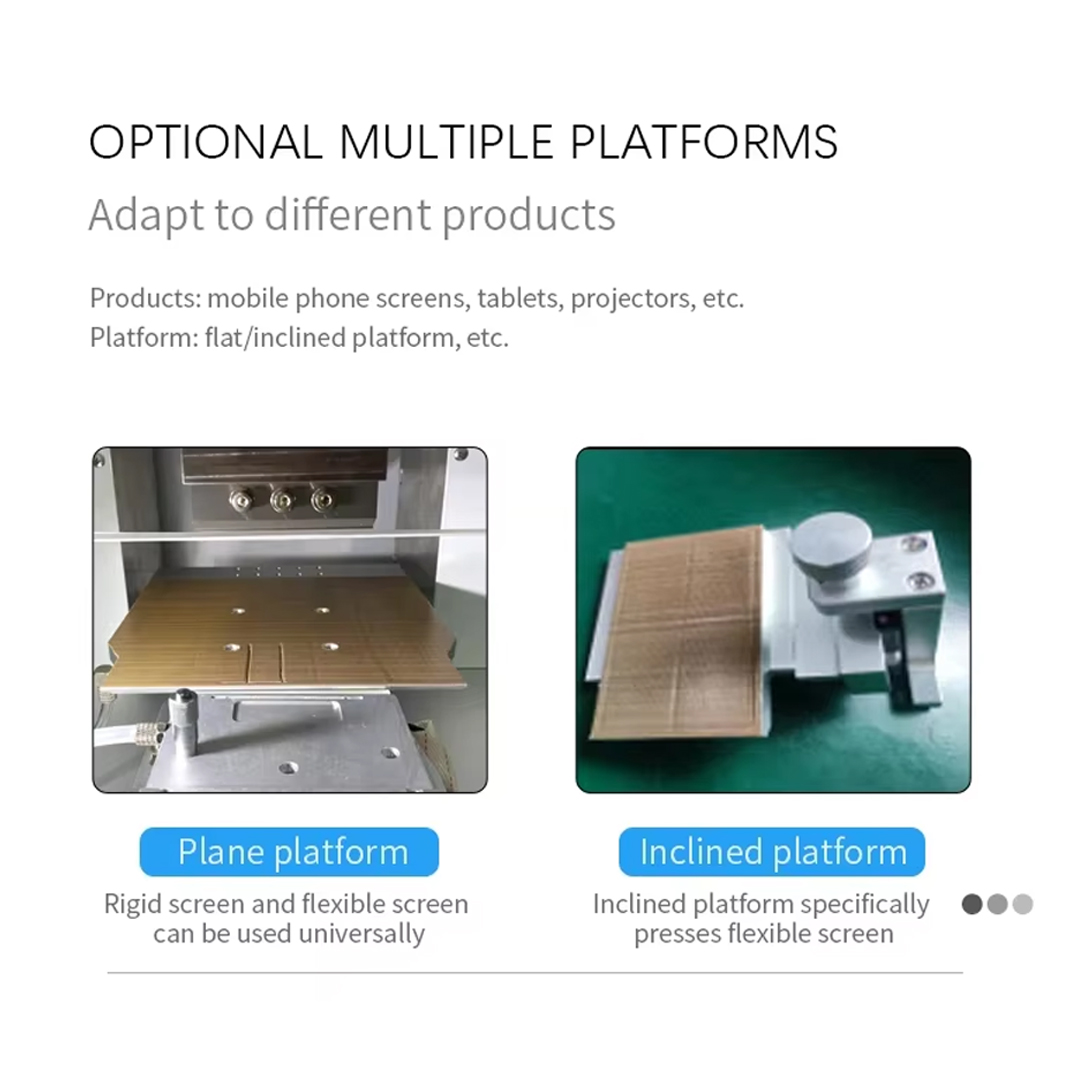

Supported Screen Types	Flat LCDs, Flexible OLEDs, COG panels, and High-end Curved Screens
Compatible Brands	iPhone (including Display IC bypass), Samsung Galaxy Edge series, OnePlus, Xiaomi, Oppo, Vivo, Apple Watch, and iPads
Heating Method	Pulse Heating / Hot Pressing (Rapid heat-up and instant cooling to protect delicate circuits)

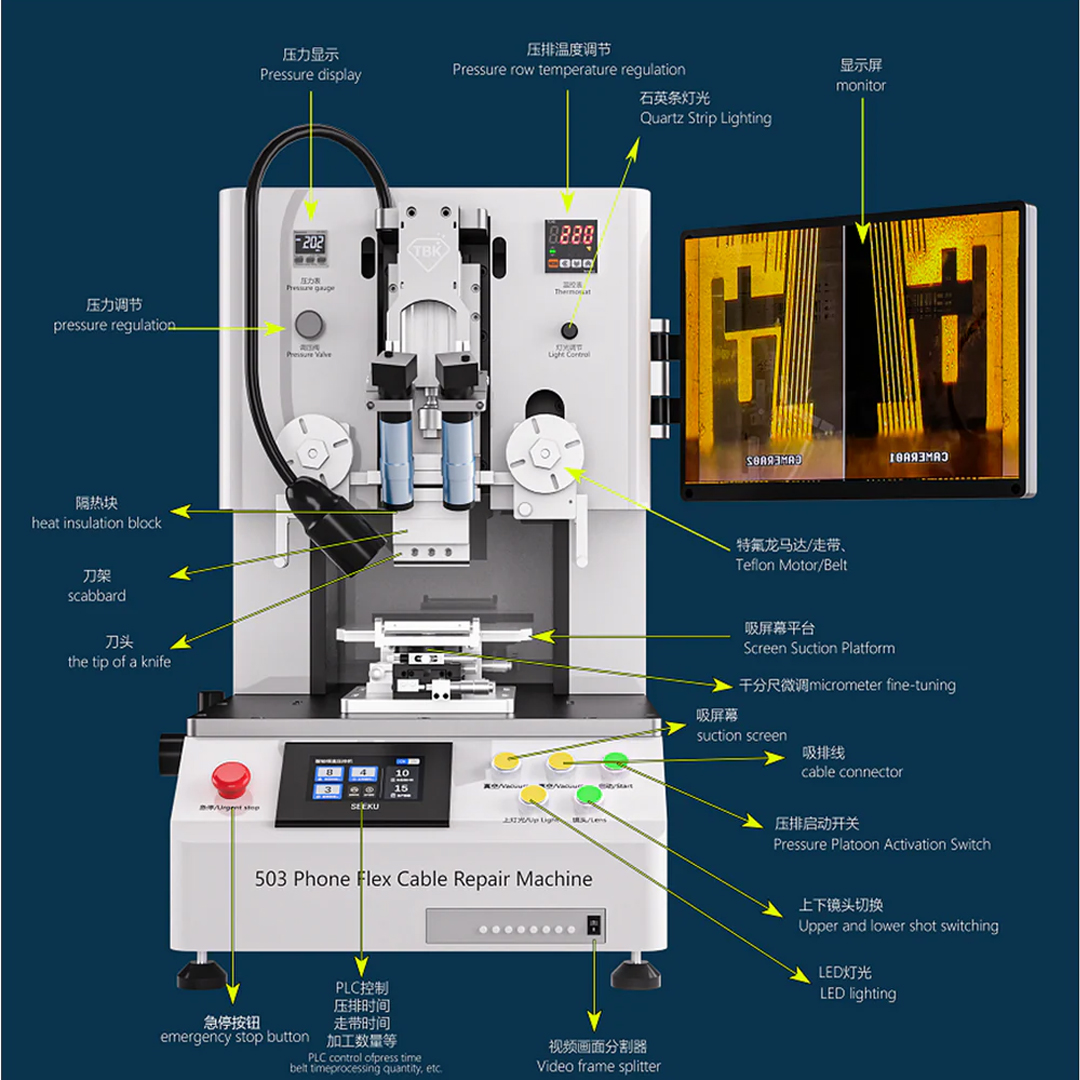

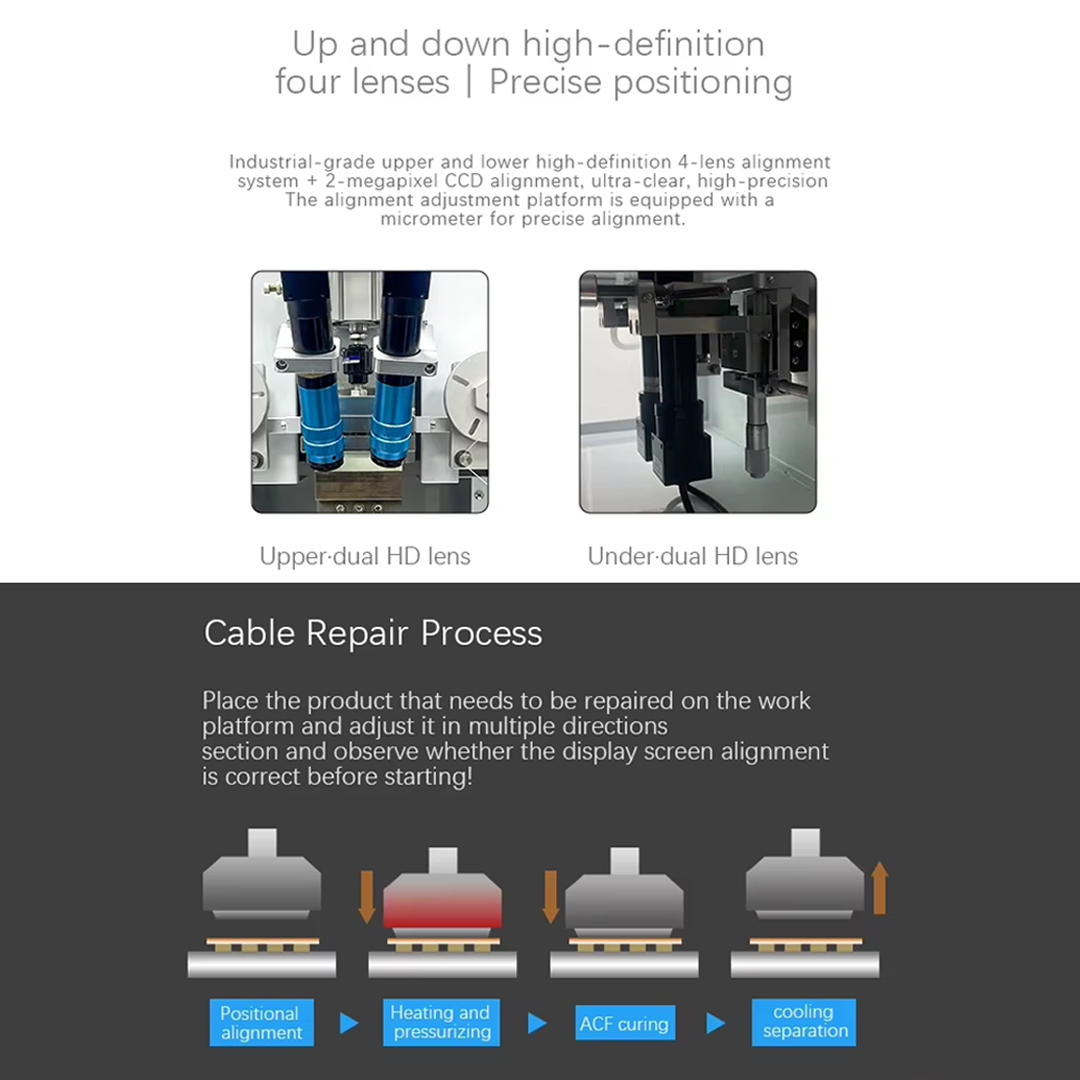

Alignment System	Dual High-Definition CCD Cameras with adjustable under-lighting for microscopic micrometer alignment
Pressure Head Material	Premium Titanium Alloy (Ensures uniform heat distribution and prevents thermal deformation)
Temperature Control	Digital PID microprocessor control (Adjustable from Room Temp up to 400°C with pm ±1°C accuracy)
Power Supply	AC 110V / 220V Adaptive (50-60Hz)
Equipment Power	800W
Working Air Pressure	0.2 - 0.6 MPa (Clean, dry compressed air source required)
Machine Weight	Approx. 45 kg (Heavy-duty desktop stability to prevent calibration drift)

Product Feature / Spec

Detailed Description & Value

Brand & Model

TBK-503 (Genuine Original Equipment)

Primary Application

Bonding and repairing Flex Cables, FPC, COF, COP, and Display ICs

Supported Screen Types

Flat LCDs, Flexible OLEDs, COG panels, and High-end Curved Screens

Compatible Brands

iPhone (including Display IC bypass), Samsung Galaxy Edge series, OnePlus, Xiaomi, Oppo, Vivo, Apple Watch, and iPads

Heating Method

Pulse Heating / Hot Pressing (Rapid heat-up and instant cooling to protect delicate circuits)

Alignment System

Dual High-Definition CCD Cameras with adjustable under-lighting for microscopic micrometer alignment

Pressure Head Material

Premium Titanium Alloy (Ensures uniform heat distribution and prevents thermal deformation)

Temperature Control

Digital PID microprocessor control (Adjustable from Room Temp up to 400°C with pm ±1°C accuracy)

Power Supply

AC 110V / 220V Adaptive (50-60Hz)

Equipment Power

800W

Working Air Pressure

0.2 - 0.6 MPa (Clean, dry compressed air source required)

Machine Weight

Approx. 45 kg (Heavy-duty desktop stability to prevent calibration drift)

Core Operational Capabilities

Operation Category	Capabilities & Troubleshooting Use Cases

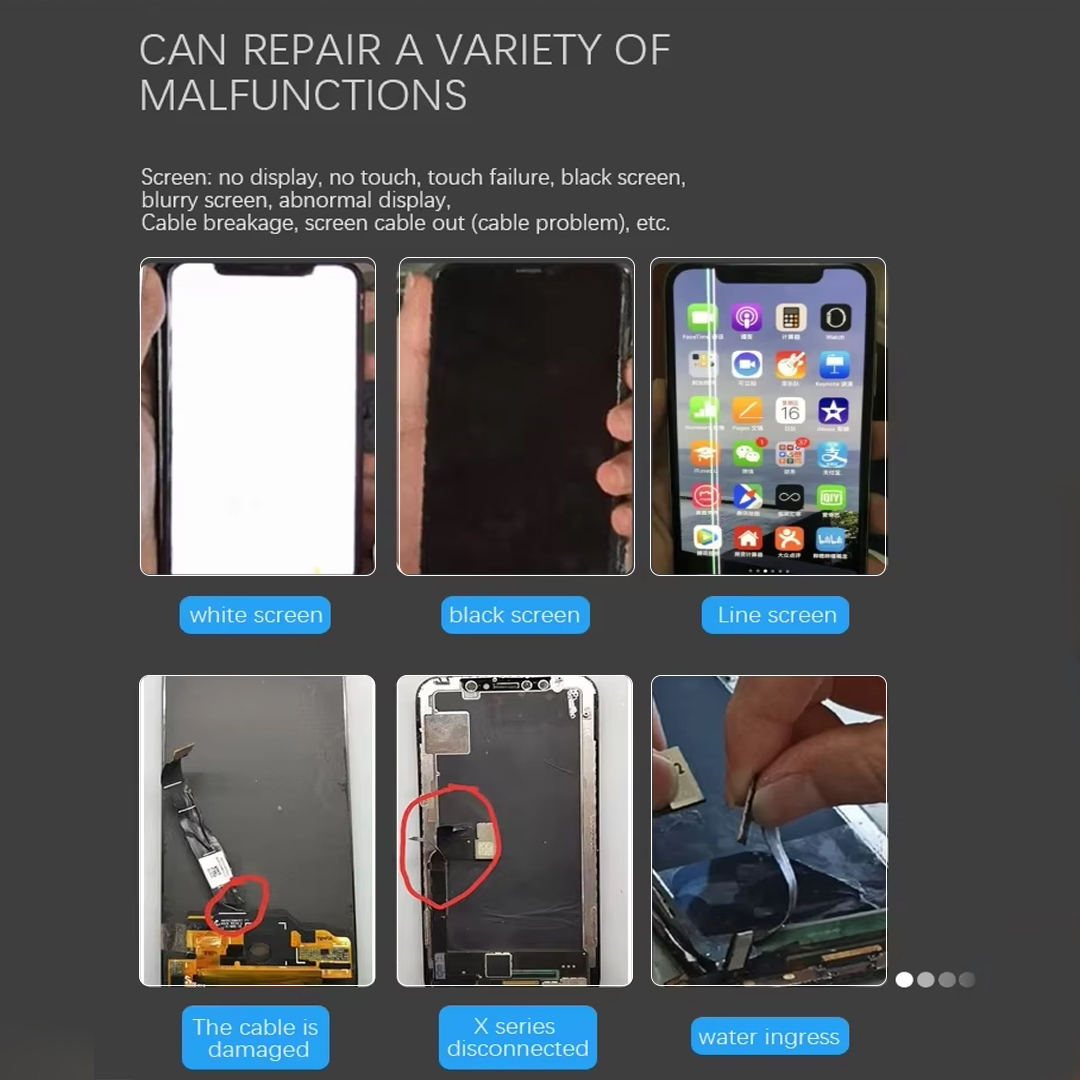

OLED Green Line Fix	Corrects internal trace disruptions that cause solid green/white vertical lines on AMOLED and Super AMOLED displays.
Touch IC / FPC Bonding	Solves erratic touch response, dead zones, and completely unresponsive touch digitizers by cleanly rebonding the ribbon cable to the glass matrix.
Curved Screen Adaptation	Specially calibrated pressure alignments prevent edge cracking on delicate wrap-around displays like Samsung Edge or OnePlus Pro series.
Display IC Refurbishing	Essential tool for modern phone technicians migrating original display ICs to replacement screens to remove "Important Display Message" warnings (e.g., iPhone 11 through iPhone 15/16 series).

Operation Category

Capabilities & Troubleshooting Use Cases

OLED Green Line Fix

Corrects internal trace disruptions that cause solid green/white vertical lines on AMOLED and Super AMOLED displays.

Touch IC / FPC Bonding

Solves erratic touch response, dead zones, and completely unresponsive touch digitizers by cleanly rebonding the ribbon cable to the glass matrix.

Curved Screen Adaptation

Specially calibrated pressure alignments prevent edge cracking on delicate wrap-around displays like Samsung Edge or OnePlus Pro series.

Display IC Refurbishing

Essential tool for modern phone technicians migrating original display ICs to replacement screens to remove "Important Display Message" warnings (e.g., iPhone 11 through iPhone 15/16 series).

Why Choose the TBK-503? (Value Proposition)

Key Advantage	How it Helps Your Repair Business

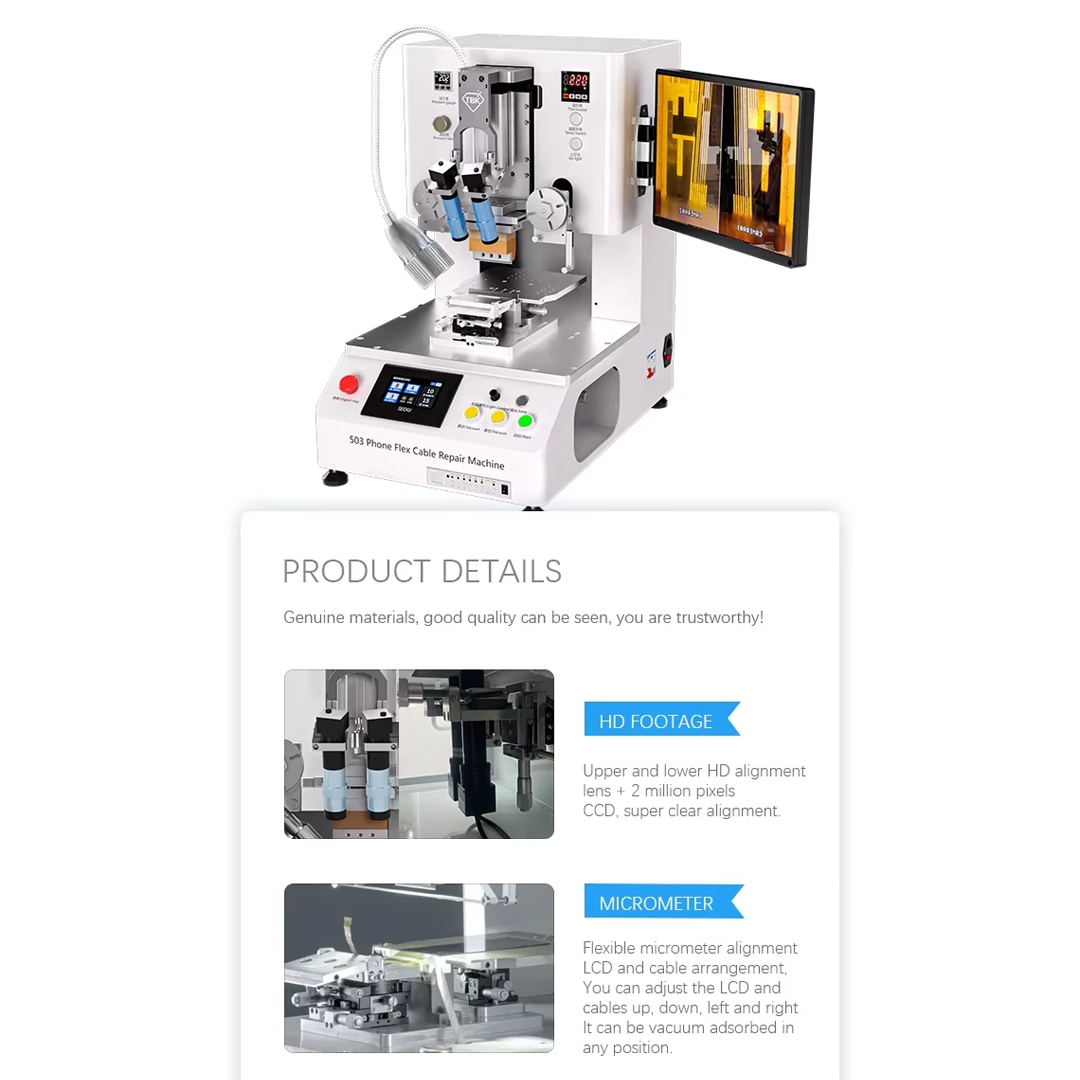

High Success Rate	The dual micrometer adjustment knobs allow the technician to align the display traces down to the micron before pressing, drastically reducing screen wastage.
Thermal Protection	Because it uses pulse heating, the machine only reaches maximum bonding temperature for a few exact seconds during the press, meaning it won’t burn or delaminate surrounding fragile flexible plastic substrates.
Future-Proof Setup	As screens evolve toward zero-bezel COP (Chip-on-Plastic) and flexible form factors, the TBK-503 provides the structural clearance and pressure control required for modern smartphone engineerin

Key Advantage

How it Helps Your Repair Business

High Success Rate

The dual micrometer adjustment knobs allow the technician to align the display traces down to the micron before pressing, drastically reducing screen wastage.

Thermal Protection

Because it uses pulse heating, the machine only reaches maximum bonding temperature for a few exact seconds during the press, meaning it won’t burn or delaminate surrounding fragile flexible plastic substrates.

Future-Proof Setup

As screens evolve toward zero-bezel COP (Chip-on-Plastic) and flexible form factors, the TBK-503 provides the structural clearance and pressure control required for modern smartphone engineerin
